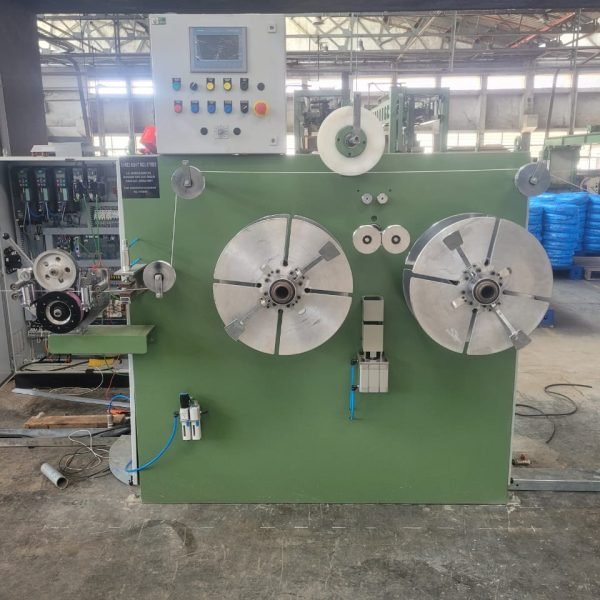

Semi-Dual Coiler Machine
Flexible Coiling with Increased Productivity for Wire and Cable
Product Overview
The Semi-Dual Coiler is a smart, space-saving solution designed for manufacturers who need enhanced productivity without full automation. It features two coiling heads on a rotating base, allowing operators to prepare and unload one coil while the other is in use minimizing downtime and improving overall line efficiency. Ideal for medium-to-high-speed extrusion or rewinding lines.
Key Features
- Dual Head Coiling Efficiency
One head coils while the operator removes and prepares the second head, reducing changeover time. - Clean & Uniform Coiling
Precision motor control for consistent coil quality across all sizes. - Heavy-Duty & Versatile
Rugged design handles flexible cables and wires. - Smart Control (Optional)
PLC and HMI integration for recipe storage, alarm handling, and diagnostics. - Operator-Friendly
Ergonomic design, manual override options, and easy-to-maintain mechanics. - Space Efficient
Compact footprint suitable for constrained shop floors or integrated production lines.
Optional Add-Ons
- Pneumatic turntable for faster coil switching
- Dancer unit for tension accuracy
- Coil counter & auto-stop at pre-set lengths
Applications
Perfect for automotive wire harnesses, electrical cables, and small-scale industrial cable production.
Technical Specifications
|
Specification |
Details |
|
Model |
SDC-700 / SDC-1000 |
|
Type |
Semi-Automatic Dual Coiler |
|
Application |
Hose Wire and Cable |
|
No. of Coiling Heads |
2 (with manual/auto rotation between heads) |
|
Coil Outer Diameter |
250 mm – 500 mm |
|
Coil Inner Diameter |
80 mm – 205 mm (adjustable) |
|
Coil Height |
50 mm – 250 mm |
|
Max Coiling Speed |
Up to 400 m/min |
|
Drive System |
AC/Servo Motor Drive (adjustable speed) |
|
Control System |
PLC-based with HMI Touchscreen (optional) |
|
Tension Control |
Dancer Unit or Feedback Loop (optional) |
|
Power Requirement |
3 Phase, 415V, 50 Hz, 2 – 4 HP |
|
Machine Dimensions |
Approx. 2200 x 1500 x 1600 mm |
|
Net Weight |
Approx. 900 – 1200 kg |
