Portal Type Pay-Off
Heavy-Duty Unwinding Solution for Large Drums and High-Speed Cable Lines
Product Overview

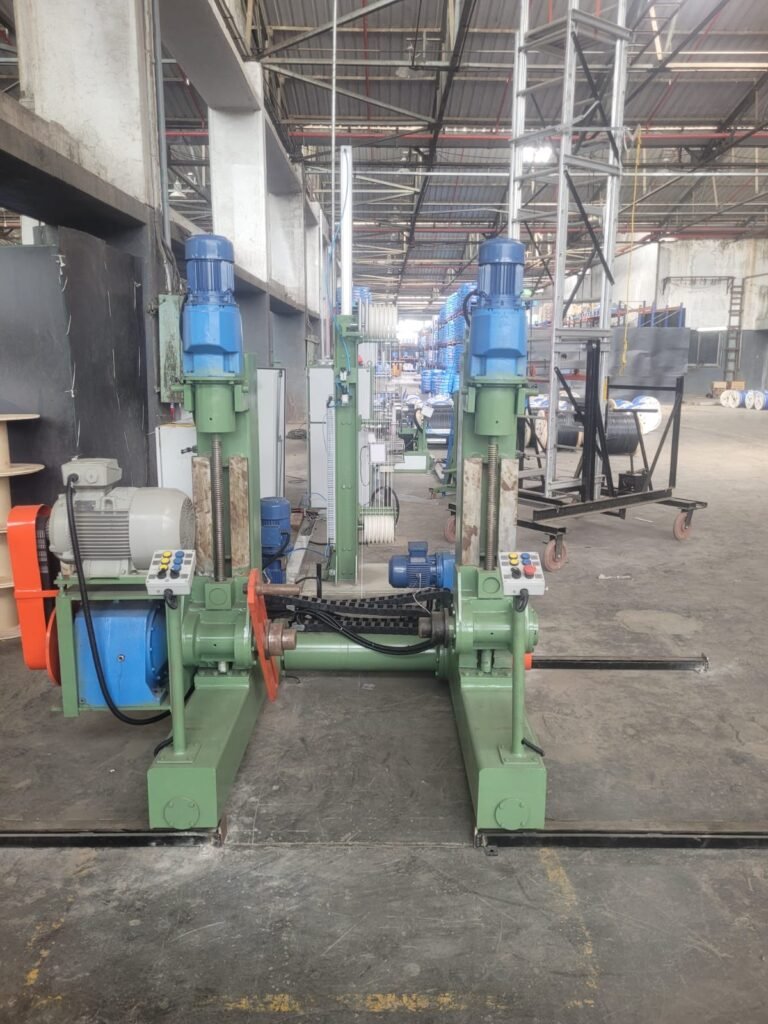

The Portal Type Pay-Off Machine is designed for large drum cable unwinding in high-speed coiling and rewinding operations. Built with a gantry-style (portal) structure, it provides stability, precision, and heavy load handling. Equipped with motorized lifting arms and motorized drive, this pay-off ensures smooth, tangle-free release even at high production speeds, making it a go-to solution for power cable, fiber optic, and industrial wire processing lines.
Key Features
- Heavy Load Capacity
Engineered to support large, heavy drums up to 5 tons for industrial-grade operations. - Precise Tension Control
Advanced feedback system ensures consistent tension, even at high line speeds. - Continuous Operation
Ideal for high-speed coiling and rewinding lines requiring uninterrupted feed. - Motorized and Pneumatic Lifting System
Simplifies drum loading and unloading with minimal manual intervention. - Safety First
Equipped with interlocks, emergency stops, and overload protection. - Smart Automation Ready
PLC/HMI-based interface for recipe control, diagnostics, and auto synchronization.
Optional Add-Ons
- Load cell-based auto tension controller
- Drum rotation sensors with feedback loop
- Integration with upstream/downstream systems
- Remote operation & data logging features
Applications
Used in power cable plants, telecom cable manufacturing, high-speed rewinding stations, coiling lines, solar cables and heavy-duty industrial cabling operations.
Technical Specifications
|
Specification |
Details |
|
Model |
PPO-1250 / PPO-1600 / PPO-2000 |
|
Type |
Portal Frame with Center Shaft |
|
Application |
Power Cables, Data Cables, Fiber Optics, Industrial Wires |
|
Max Drum Diameter |
1250 mm / 1600 mm / 2000 mm |
|
Max Drum Width |
Up to 1400 mm |
|
Max Load Capacity |
Up to 5,000 kg |
|
Pay-Off Speed |
Up to 200 m/min |
|
Drive Type |
Motorized (AC/Servo) with Torque Control |
|
Drum Holding Mechanism |
Expandable Shaft |
|
Lifting System |
Motorized |
|
Brake System |
Pneumatic Disc |
|
Tension Control |
Vertical Dancer |
|
Control System |
PLC with HMI Touchscreen |
|
Power Supply |
3 Phase, 415V, 50 Hz, 5 – 15 HP |
|
Machine Dimensions |
Approx. 3500 x 2500 x 3000 mm (varies with model) |
|
Structure Material |
Fabricated Mild Steel, Powder-Coated Finish |
|
Safety Features |
Emergency Stop, Safety Interlocks, Limit Sensors |
