Product Overview

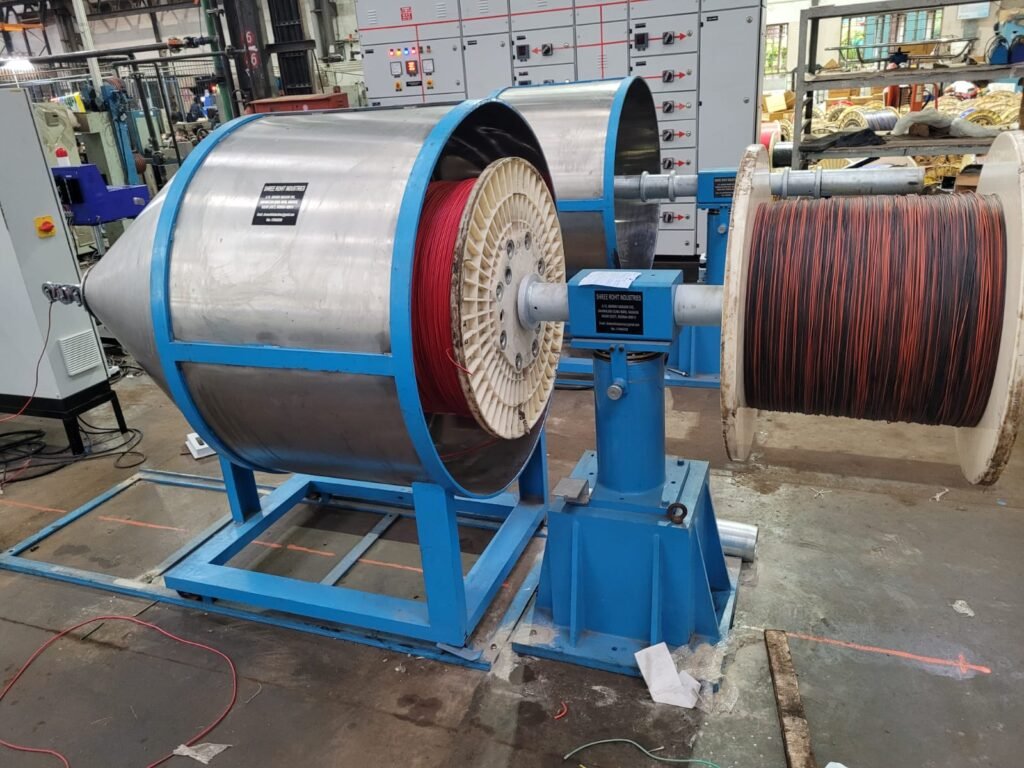

The Dual Bobbin Conical Pay-Off is engineered for continuous, high-efficiency cable and wire unwinding applications. With two conical bobbins mounted on a single frame, the system allows for seamless switching between bobbins minimizing downtime and maximizing productivity. It is ideal for extrusion lines, rewinding systems, or wire processing units requiring consistent feed without tangling or jerks.
Key Features
- Dual Bobbin Setup
Continuous unwinding with quick bobbin changeover for uninterrupted production. - Smooth & Tangle-Free Pay-Off
Conical design ensures jerk-free release of coiled materials. - Heavy-Duty Construction
Built for demanding industrial use, 24/7 operation ready. - Tension Control
Equipped with adjustable braking options to maintain consistent feed. - High-Speed Compatibility
Supports modern coiling line speeds up to 370 m/min.
Optional Add-Ons
- Servo-operated dancer arm with real-time feedback
- Auto bobbin switch-over for minimal manual intervention
- Coil-end sensor with automatic stop mechanism
- Lifting/lowering frame or rotation base for ergonomic handling
Applications
Used widely in power cable plants, data cable manufacturing, hose extrusion lines, rewinding stations, and automated bundling systems.
Technical Specifications
|
Specification |
Details |
|
Model |
DBCPO-800 / DBCPO-1000 |
|
Type |
Dual Bobbin, Conical Drum, Floor-Mounted |
|
Application |
Hose Wire, Cable |
|
No. of Bobbins |
2 (with manual) |
|
Coil Outer Diameter |
630 mm, 800 mm, 1000 mm |
|
Max Pay-Off Speed |
Up to 370 m/min (depending on material & configuration) |
|
Drive Type |
Free Rotation |
|
Switching Mechanism |
Manual |
|
Load Capacity per Bobbin |
Up to 800 kg |
|
Structure Material |
Heavy-Duty MS with Powder Coating |
|
Power Requirement |
3 Phase, 415V, 50Hz, 1.5 – 4 HP |
|
Machine Dimensions |
Approx. 2400 x 1500 x 1800 mm |
|
Weight |
Approx. 1000 – 1300 kg |
