Product Overview

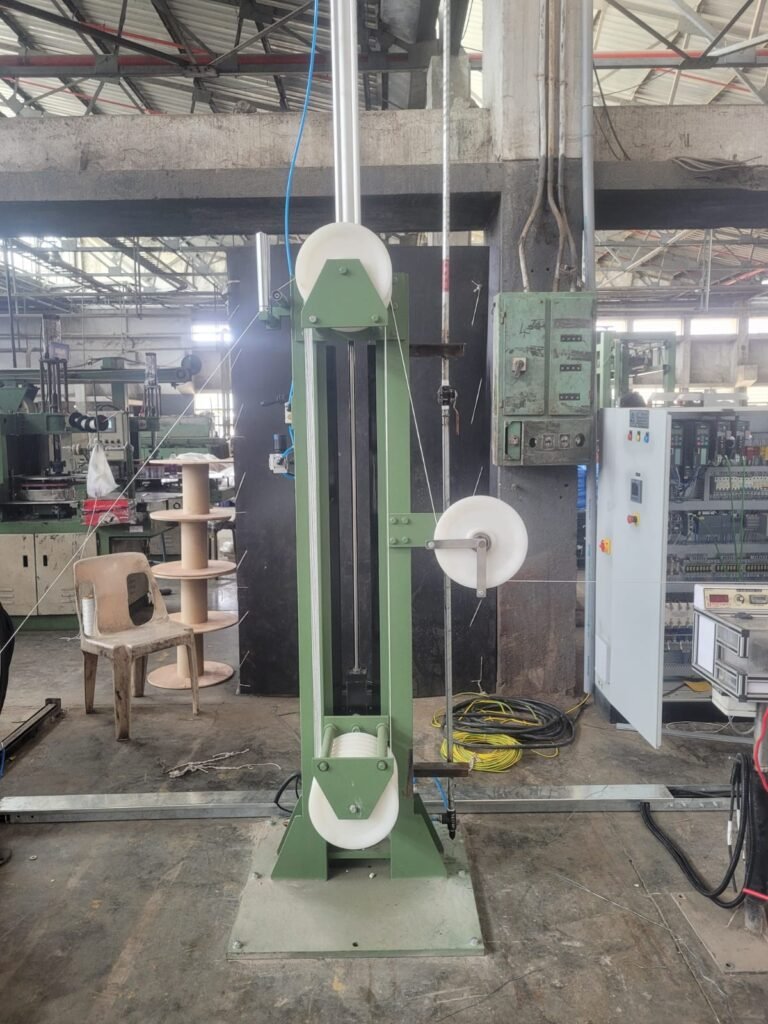

The Dancer Unit is a precision tension control mechanism used in wire, cable to ensure smooth, uninterrupted material flow. It compensates for speed variations between the pay-off and take-up or downstream machines by dynamically adjusting loop length and regulating line tension. Compact and easy to integrate, the Dancer is critical for achieving high-quality extrusion, rewinding and coiling results.
Key Features
- Real-Time Tension Control
Maintains consistent material tension during start-up, speed changes, or stops. - Smooth Material Flow
Prevents jerks, loops, and snags in delicate wires, cables. - Customizable Configurations
Available with pneumatic tensioning systems. - Easy Integration
Can be installed between pay-off and coiling/rewinding units with minimal setup. - Improves Output Quality
Essential for achieving perfect winding, extrusion uniformity, or print registration. - Low Maintenance
Rugged mechanical structure with minimal moving parts and long service life.
Optional Add-Ons
- Load cell for precise tension feedback
- Sensor integration for PLC-controlled systems
- HMI-based control display for advanced monitoring
Applications
Used in cable extrusion lines, coiling systems, rewinding setups, processes.
Technical Specifications
|
Specification |
Details |
|
Model |
DU-300 / DU-500 / DU-800 |
|
Application |
Hose Wire and Cable |
|
Material Diameter Range |
1 mm – 16 mm (customizable) |
|
Frame Structure |
Mild Steel |
|
Roller Diameter |
30 mm – 200 mm (Long Hard Chrome Plated) |
|
Movement Range (Stroke) |
1000 mm (model dependent) |
|
Tension Control Mode |
Pneumatic Cylinder |
|
Mounting Style |
Floor Stand |
|
Working Speed |
Up to 400 m/min |
|
Power Supply (if applicable) |
24V / 230V AC (for motorized or sensor-based models) |
|
Weight |
30 – 100 kg (depends on configuration) |
