Product Overview

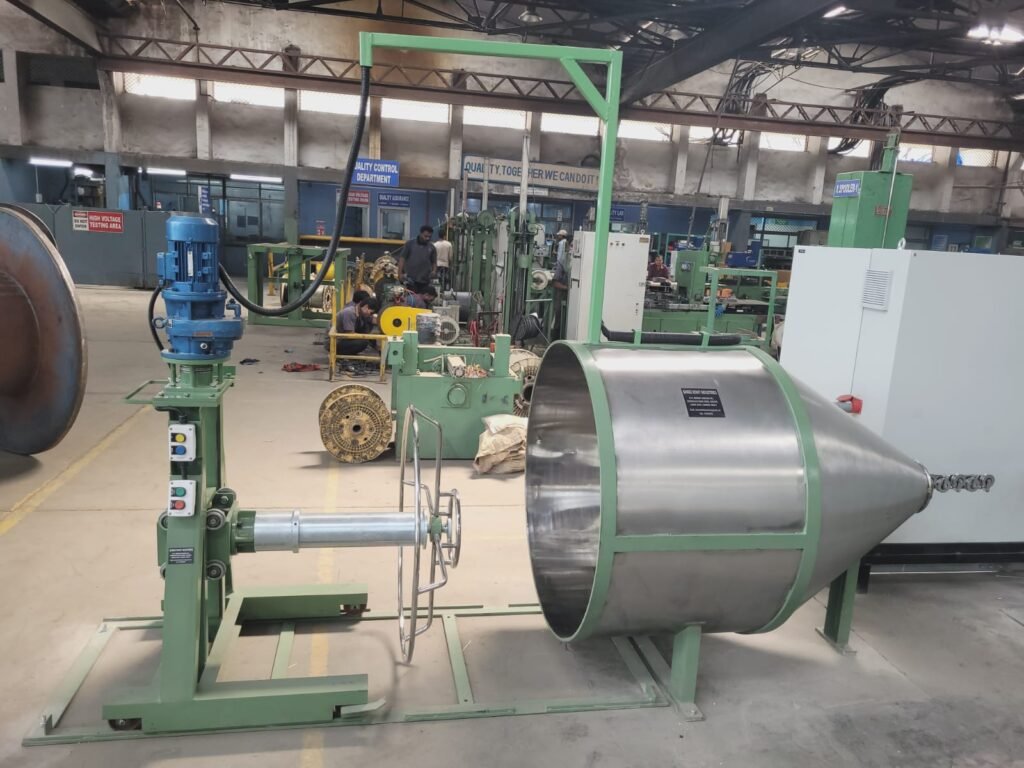

The Conical Pay-Off is a robust, high-efficiency cable feeding system designed for smooth unwinding of flexible materials such as wires and cables. Its conical design allows the material to be placed directly on a cone-shaped drum, ensuring tangle-free pay-out at variable speeds. Ideal for integration with extrusion lines, coiling units, rewinding stations, this unit enhances line stability, material flow, and productivity.
Key Features
- Smooth & Jerk-Free Unwinding
Conical design prevents looping and ensures consistent tension during operation. - No Core Clamping Required
Material is placed directly on the cone, reducing handling time and setup. - Compatible with High-Speed Lines
Operates efficiently up to 150 m/min, suitable for extrusion or rewinding lines. - Sturdy, Industrial Design
Heavy-duty frame with corrosion-resistant coating for long-term durability. - Flexible Material Support
Handles a wide range of diameters and material types without adjustment. - Low Maintenance
Simple mechanical system with minimal moving parts and easy cleaning access.
Optional Add-Ons
- Adjustable conical supports for various coil sizes
- Motorized unwinding with inverter control
- Integration with PLC or length counter systems
Applications
Perfect for use in flexible wire and cable extrusion plants, rewinding lines, coiling stations,
Technical Specifications
|
Specification |
Details |
|
Model |
CP-600 / CP-800 / CP-1000 |
|
Application |
Cables, Wires |
|
Conical Diameter Range |
630 mm, 800 mm, 1000 mm (outer) |
|
Material Diameter Compatibility |
1 mm – 6 mm |
|
Max Pay-Off Speed |
Up to 400 m/min (depending on line) |
|
Tension Control |
Manual / Dancer Arm (optional) |
|
Drive System (Optional) |
Manual Free Rotation / Motorized (with AC or Servo Drive) |
|
Structure Material |
Heavy-Duty MS |
|
Reel Holding Type |
Conical Drum without Clamping (Free Placement) |
|
Loading Type |
Manual |
|
Machine Dimensions |
Approx. 1800 x 1200 x 1500 mm (varies by model) |
|
Net Weight |
Approx. 500 – 800 kg |
