Product Overview

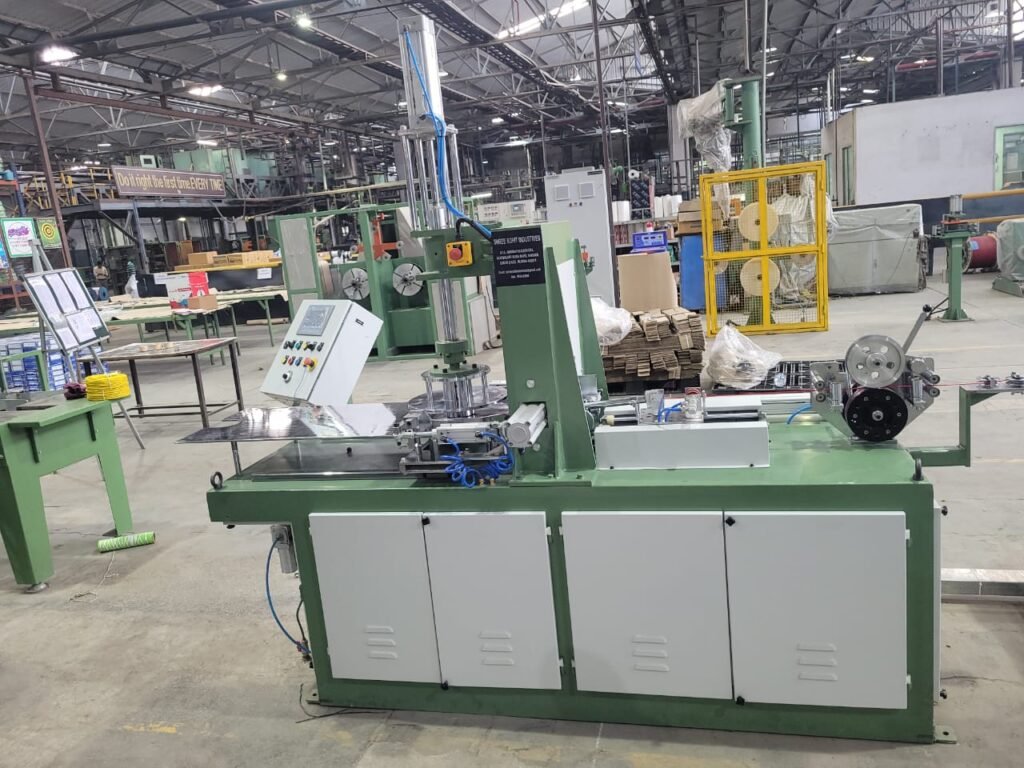

The Auto Coiler is an advanced, high-efficiency machine designed to automatically coil flexible materials such as electrical cables and wires. Suitable for integration with extrusion, rewinding, this coiler eliminates manual handling, ensures perfectly shaped coils, and significantly enhances production line efficiency. It features automated coil formation, digital length control, and optional coil ejection and binding systems.
Key Features
- Fully Automatic Operation
Streamlines coil creation, reducing manual labor and cycle time. - Precision Coil Formation
Uniform and neat coils with programmable settings for diameter, height, and length. - Intelligent Control System
PLC with HMI interface for user-friendly parameter setting, diagnostics, and job recall. - High-Speed Compatibility
Designed for continuous operation with extrusion and rewinding lines. - Optional Auto Ejection
Seamlessly transfers finished coils to collection trays or conveyors. - Built-in Safety Features
Includes emergency stop, safety guards, and overload protection. - Customizable
Compatible with various cable types, coil sizes, and automation levels.
Technical Specifications
|
Specification |
Details |
|
Model |
AC-600 / AC-800 / AC-1000 |
|
Application |
Wires, Cables |
|
Material Diameter Range |
1 mm – 6 mm |
|
Coil Outer Diameter |
300 mm – 500 mm |
|
Coil Inner Diameter |
80 mm – 210 mm |
|
Coil Height |
50 mm – 200 mm |
|
Max Coiling Speed |
Up to 400 m/min |
|
Drive System |
AC Motor / Servo Motor with VFD |
|
Control Interface |
PLC with HMI Touchscreen |
|
Tension Control (Optional) |
Dancer |
|
Coil Ejection System |
Pneumatic |
|
Power Requirement |
3 Phase, 415V, 50 Hz, 4 – 7 HP |
|
Machine Dimensions |
Approx. 2200 x 1800 x 1700 mm |
|
Net Weight |
1000 – 1500 kg (model dependent) |
